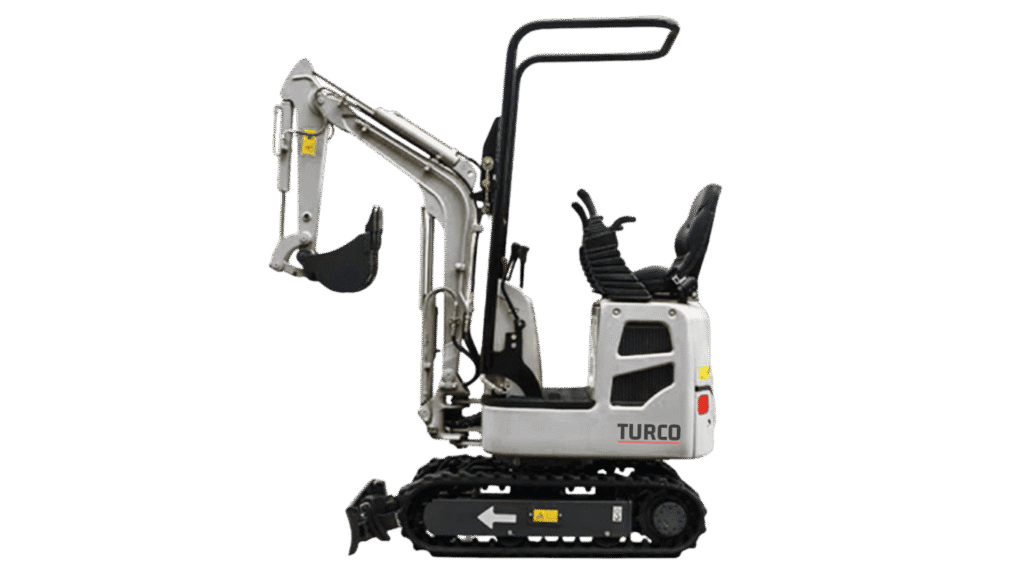

TRE 08B
TRE 08B TRE 08B Inquiry Parameters 2640*2250*750 Overall Dimensions (L*W*H) 10L Fuel Tank Capacity kw/rpm Engine Rated Power 1770mm Max. Dumping Height 1450mm Max. Digging Depth 2850mm Max. Digging Reach Technical Parameters Basic Parameter Operating Weight: 1010 kgBucket Capacity: 0.022 m3 Overall Dimension Operating weight: 2640 mmOverall Height: 2250 mmOverall Width: 750 mmCounterweight Clearance: 420 […]
TRE08F
TRE08F TRE08F Inquiry Parameters 1010kg Operating Weight 0.022m3 Bucket Capacity 2640mm Overall Length 2275mm Overall Height 750mm Overall Width 420mm Counterweight Clearance Technical Parameters Basic Parameter Operating Weight: 1010 kgBucket Capacity: 0.022 m3 Overall Dimension Overall Length: 2640 mmOverall Height: 2275 mmOverall Width: 750 mmCounterweight Clearance: 420 mmGround Clearance: 130 mmTail Swing Radius: 750 mmLength […]
TRE10FE
TRE10FE TRE10FE Inquiry Parameters 1010kg Operating Weight 5.5kW Bucket Capacity 0.022〜0.051m ³ Overall Length 19.4N·m Overall Height 13.5kWh Overall Width 73.6V Counterweight Clearance Technical Parameters Basic Parameter Total weight: 1010 kgEngine power: 5.5 kWBucket capacity: 0.022〜0.051m ³ Motor Type: Three-phase asynchronousRated power: 5.5 kWRated torque: 19.4 N·m Battery Type: Lithium Iron PhosphateCapacity: 13.5 kWhVoltage: 73.6 […]

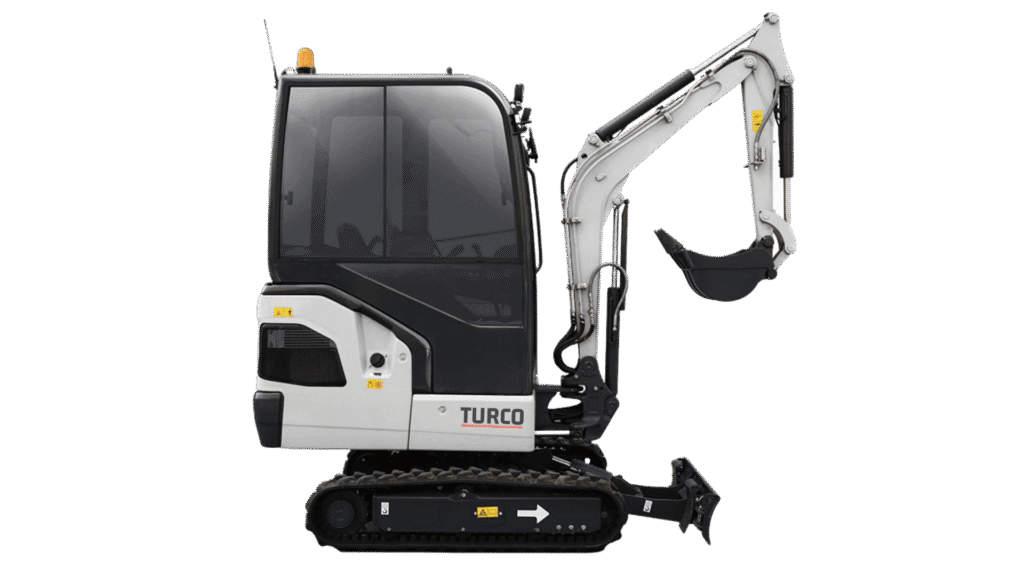

TRE17F
TRE17F TRE17F Inquiry Parameters 1780kg Operating Weight 0.035m3 Bucket Capacity 3840mm Overall Length 2360mm Overall Height 990mm Overall Width 460mm Counterweight Clearance Technical Parameters Basic Parameter Operating Weight: 1780 kgBucket Capacity: 0.035 m3 Overall Dimension Overall Length: 3840 mmOverall Height: 2360 mmOverall Width: 990 mmCounterweight Clearance: 460 mmGround Clearance: 160 mmTail Swing Radius: 1110 mmLength […]

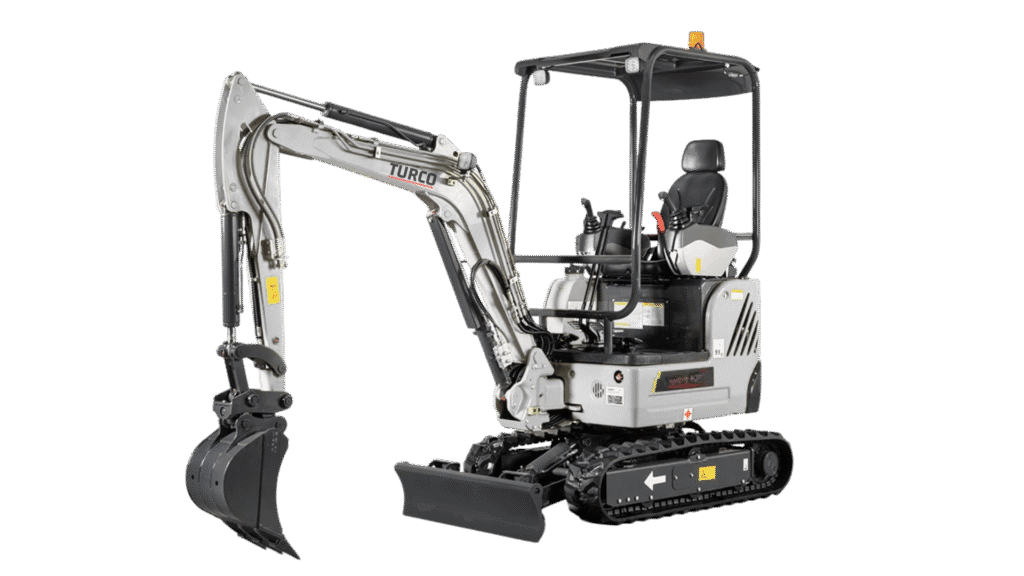

TRE18UF
TRE18UF TRE18UF Inquiry Parameters 1880kg Operating Weight 0.04m3 Bucket Capacity 3580 Overall Length 2400mm Overall Height 990/1360mm Overall Width 470mm Counterweight Clearance Technical Parameters Basic Parameter Operating Weight: 1880 kgBucket Capacity: 0.04 m3 Overall Dimension Overall Length:3580 mmOverall Height: 2400 mmOverall Width: 990/1360 mmCounterweight Clearance: 470 mmGround Clearance: 180 mmTail Swing Radius: 680 mmLength to […]

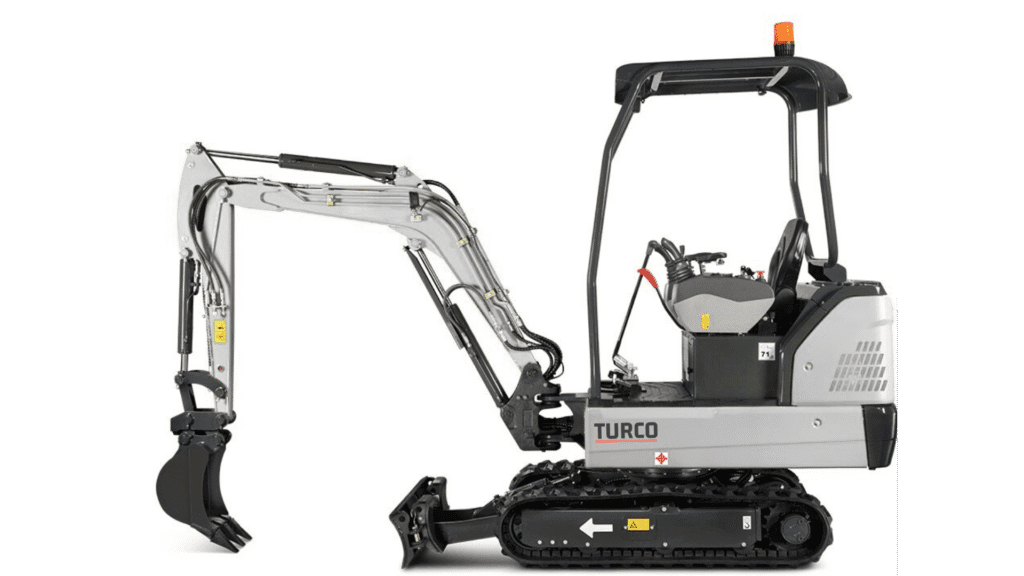

TRE20FED
TRE20FED TRE20FED Inquiry Parameters 3840x990x2361mm (L-W-H) 1.92t With rubber track 0.035m3 Standard bucket capacity 22.7KN Bucket digging ability 9.8KN Digging force of arm 18.5KN Max.traction Technical Parameters Basic Parameter Dimension(L-W-H): 3840x990x2361 mmWith rubber track: 1.92 tWith steel track: tStandard bucket capacity: 0.035 m3Bucket digging ability: 22.7 KNDigging force of arm: 9.8 KNMax.traction: 18.5 KNDeflection angle(boom): […]
TRE25F
TRE25F TRE25F Inquiry Parameters 2640kg Operating Weight 0.08m3 Bucket Capacity 4265mm Overall Length 2400mm Overall Height 1500mm Overall Width 550mm Counterweight Clearance Technical Parameters Basic Parameter Operating Weight: 2640 kgBucket Capacity: 0.08 m3 Overall Dimension Overall Length: 4265 mmOverall Height: 2400 mmOverall Width: 1500 mmCounterweight Clearance: 550 mmGround Clearance: 280 mmTail Swing Radius: 1050 mmLength […]
TRE25UF
TRE25UF TRE25UF Inquiry Parameters 2750kg Operating Weight 0.08m3 Bucket Capacity 4150mm Overall Length 2510mm Overall Height 1500mm Overall Width 570mm Counterweight Clearance Technical Parameters Basic Parameter Operating Weight: 2750 kgBucket Capacity: 0.08 m3 Overall Dimension Overall Length: 4150 mmOverall Height: 2510 mmOverall Width: 1500 mmCounterweight Clearance: 570 mmGround Clearance: 325 mmTail Swing Radius: 765 mmLength […]
TRE35UF Enclosed
TRE35UF Enclosed TRE35UF Enclosed Inquiry Parameters 3850kg Operating Weight 0.11m3 Bucket Capacity 4890mm Overall Length 2560mm Overall Height 1700mm Overall Width 590mm Counterweight Clearance Technical Parameters Basic Parameter Operating Weight: 3850 kgBucket Capacity: 0.11 m3 Overall Dimension Overall Length: 4890 mmOverall Height: 2560 mmOverall Width: 1700 mmCounterweight Clearance: 590 mmGround Clearance: 270 mmTail Swing Radius: […]
TRE20F
TRE20F TRE20F Inquiry Parameters 1940kg Operating Weight 0.04m3 Bucket Capacity 3905mm Overall Length 2235mm Overall Height 990mm Overall Width 460mm Counterweight Clearance Technical Parameters Basic Parameter Operating Weight: 1940 kgBucket Capacity: 0.04 m3 Overall Dimension Overall Length: 3905 mmOverall Height: 2235 mmOverall Width: 990 mmCounterweight Clearance: 460 mmGround Clearance: 160 mmTail Swing Radius: 1120 mmLength […]
